IN-LITE® AIM Modular spike spotlights - 12v Garden Spotlight

The in-lite® AIM modular spike spotlight range offers unmatched flexibility for outdoor lighting, making it perfect for planting beds, pathways, trees, and more. Its clever modular design allows users to create tailored lighting setups with ease.

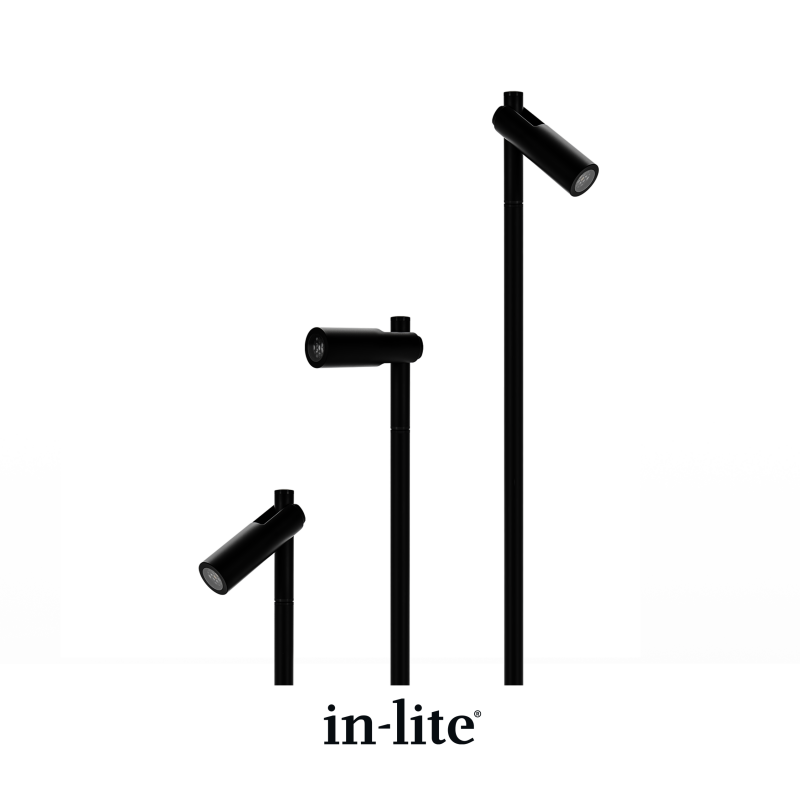

The AIM range comes in three riser heights:

• AIM EXTRA LOW – 160mm
• AIM LOW – 400mm
• AIM – 800mm

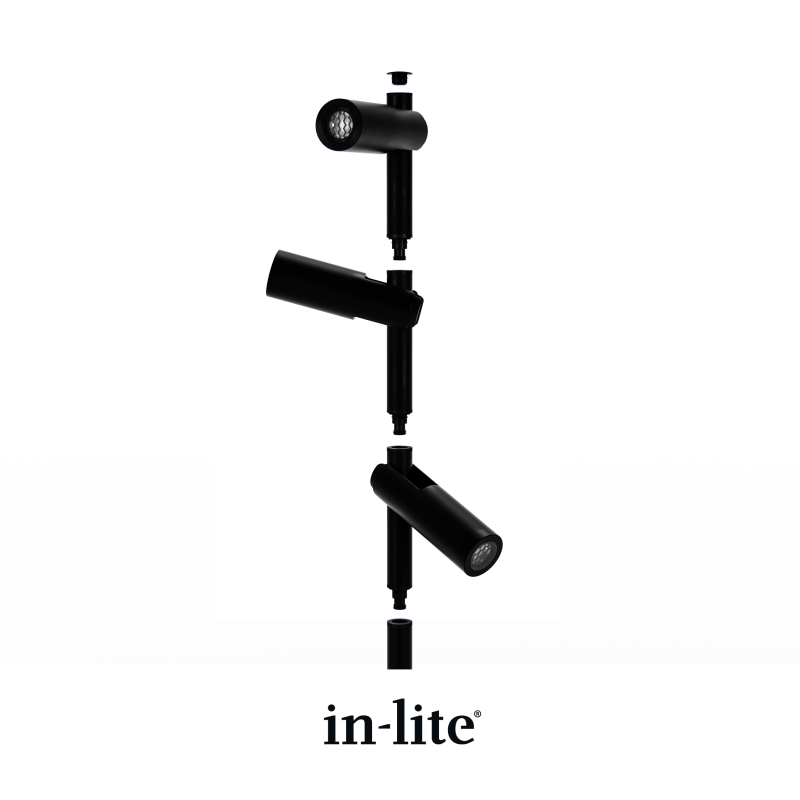

Each riser is supplied with a heavy-duty spike for secure installation in soft ground and includes one AIM LIGHTHEAD. The modular system allows up to two additional AIM LIGHTHEADs to be added per riser, giving three independently adjustable light sources per spike for ultimate customisation.

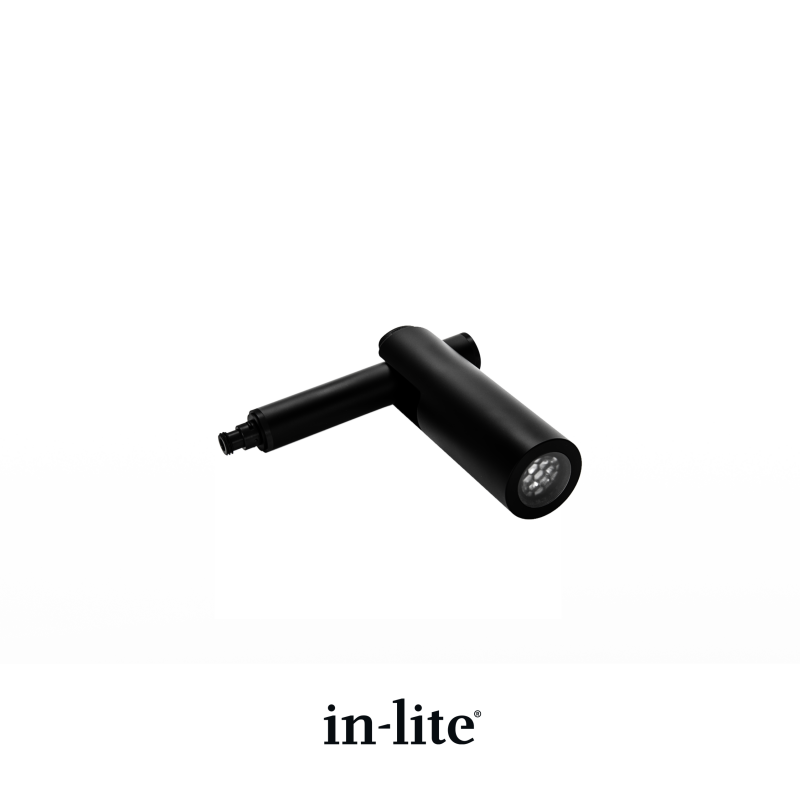

Features of the AIM LIGHTHEAD

• Push-fit installation – simply remove the cap, insert the LIGHTHEAD, and replace the cap. No additional cabling required.
• Beam angle: 35°
• Projection distance: Approx. 3.5m, ideal for shrubs and small trees.
• Built-in KILLFLASH honeycomb lens to minimise glare.
• Long-lasting LED: 25,000-hour lifetime with 5-year warranty when used with the in-lite® system.

Connectivity & Compatibility

• Supplied with EASY-LOCK connector for seamless connection to any in-lite® CBL cable.
• Cable distance to the fitting can be extended up to 3m using CBL-EXT CORDs.
• Compatible with standard 12V in-lite® systems.

Note: When calculating transformer load, always use the total VA rating, not wattage, to account for power losses. The VA load should not exceed the transformer’s stated capacity.

The in-lite® AIM range combines modularity, ease of installation, and professional-grade lighting performance, making it the ideal solution for versatile and creative outdoor illumination.
