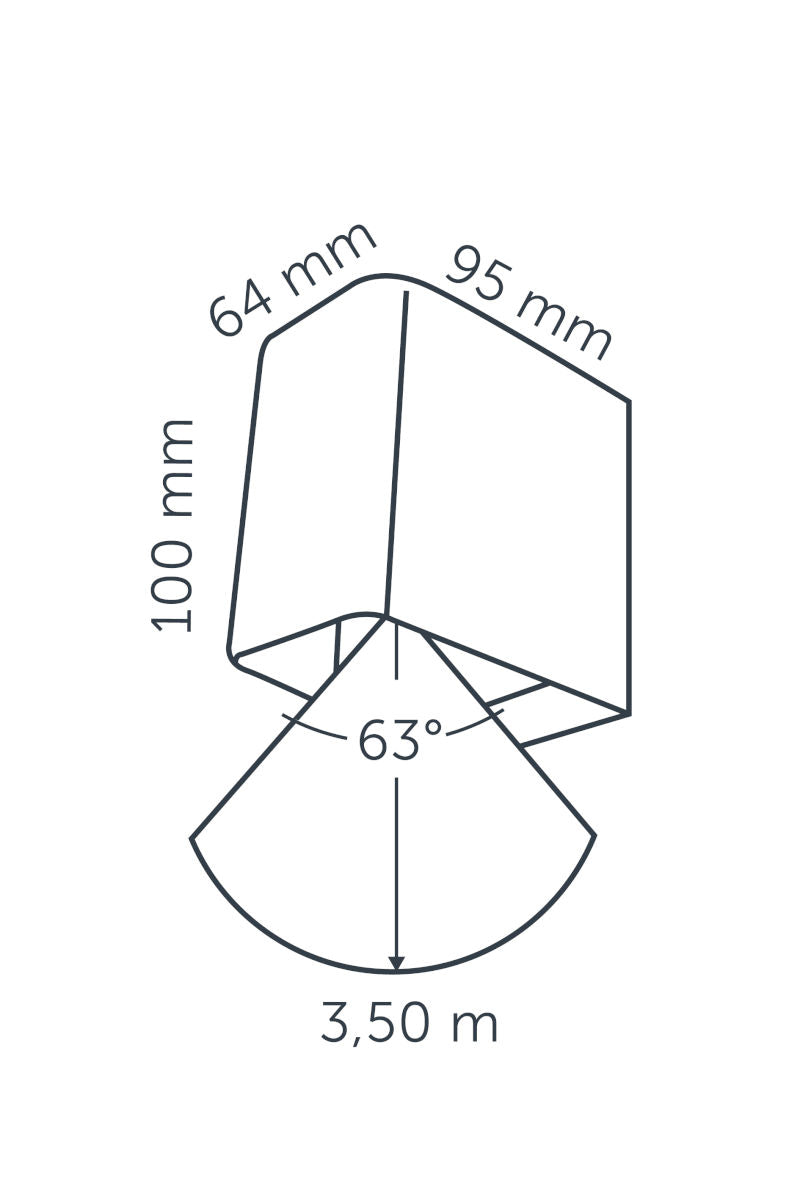

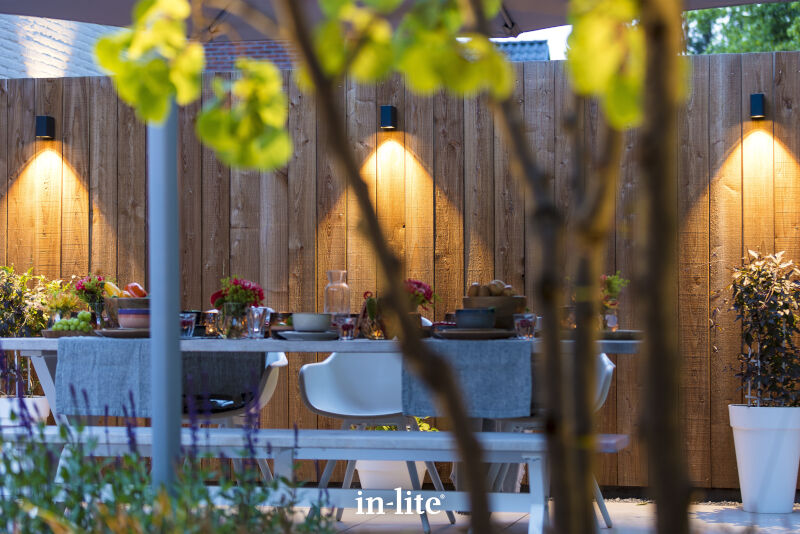

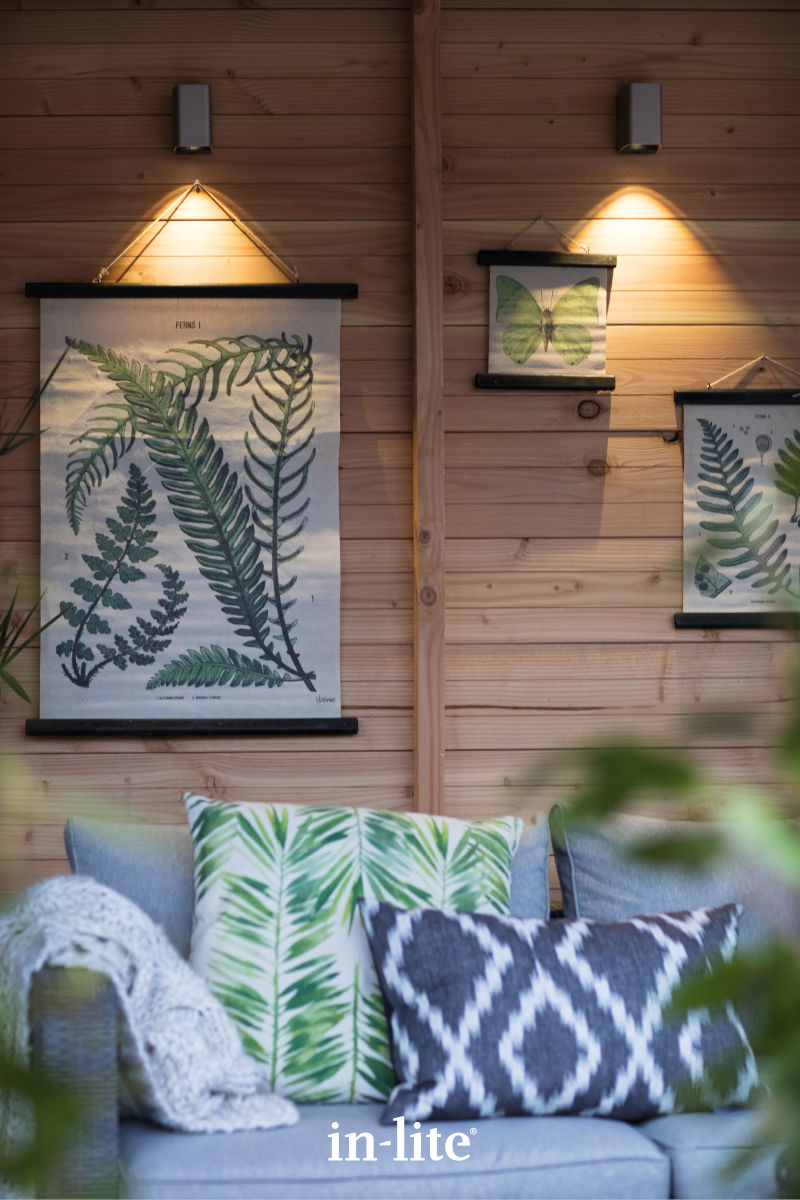

The in-lite® ACE DOWN wall light is a low voltage outdoor fitting designed to produce a focused downward beam of light, making it ideal for downlighting walls, fences, entrances and garden boundaries. The light source is recessed within the fixture to help reduce glare while maintaining a clean, controlled lighting effect.

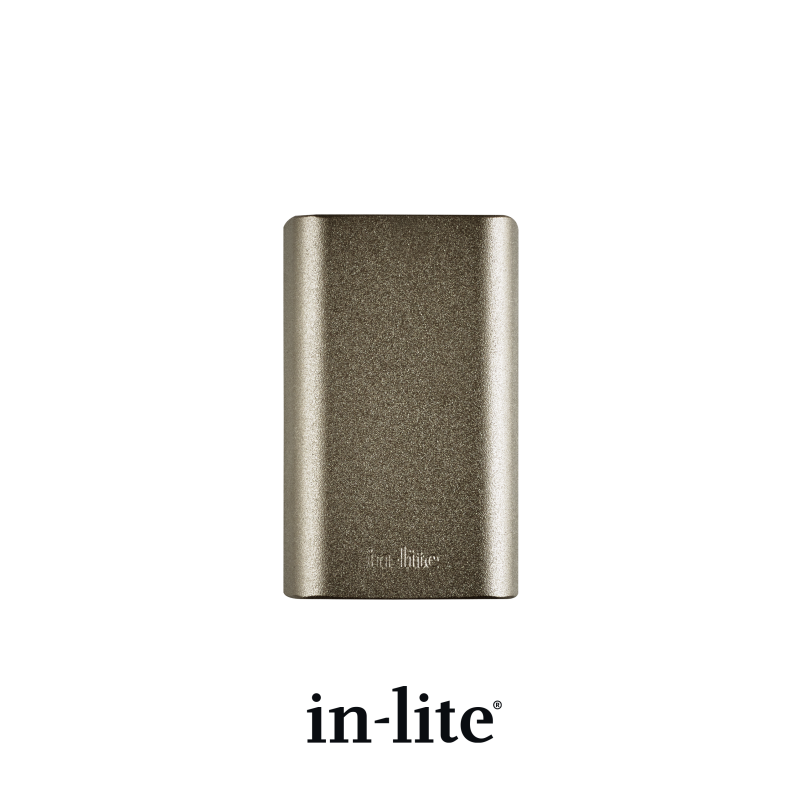

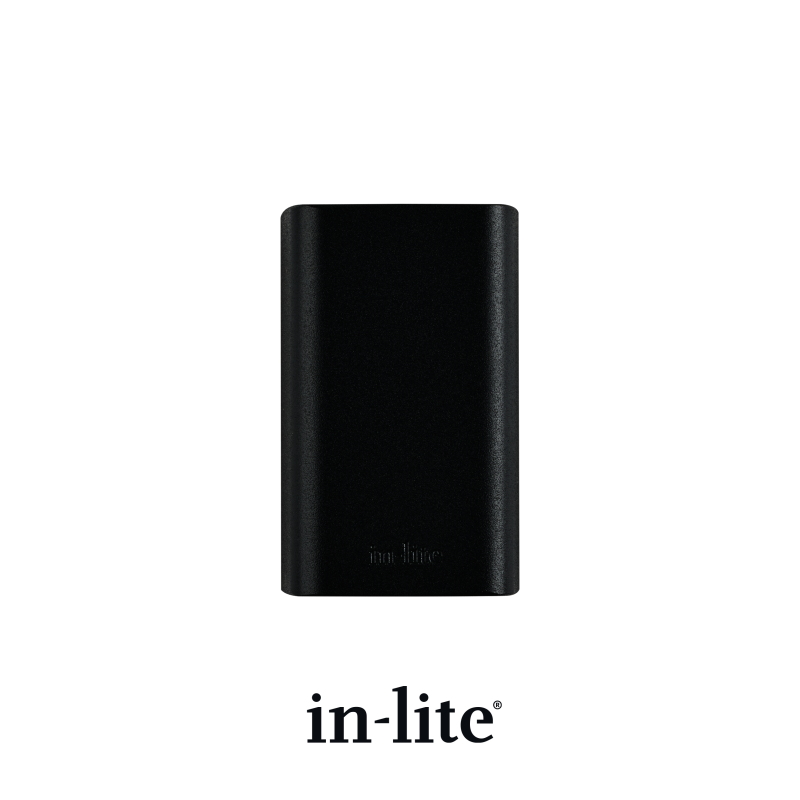

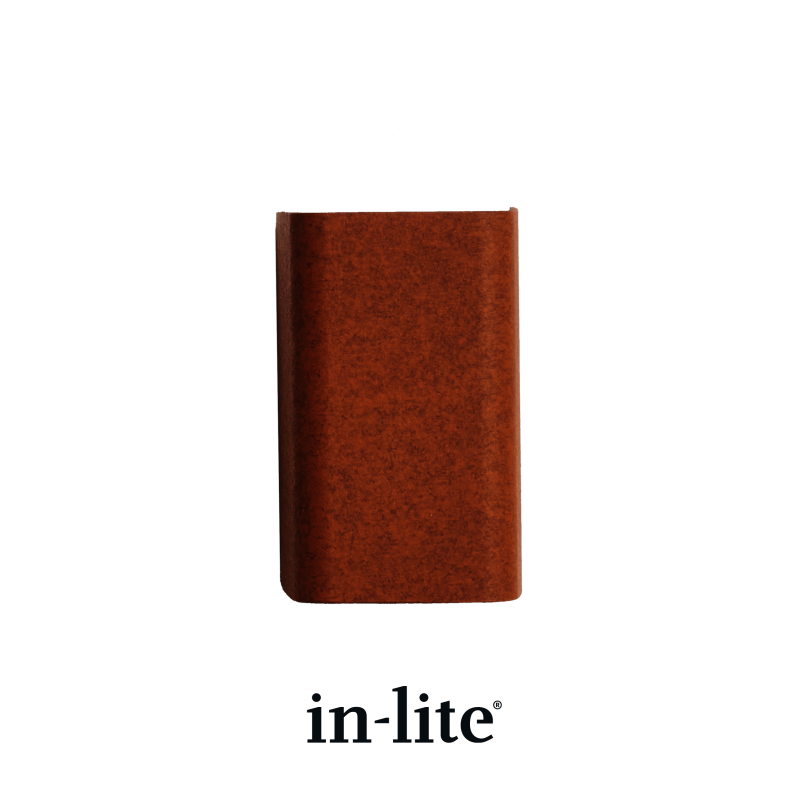

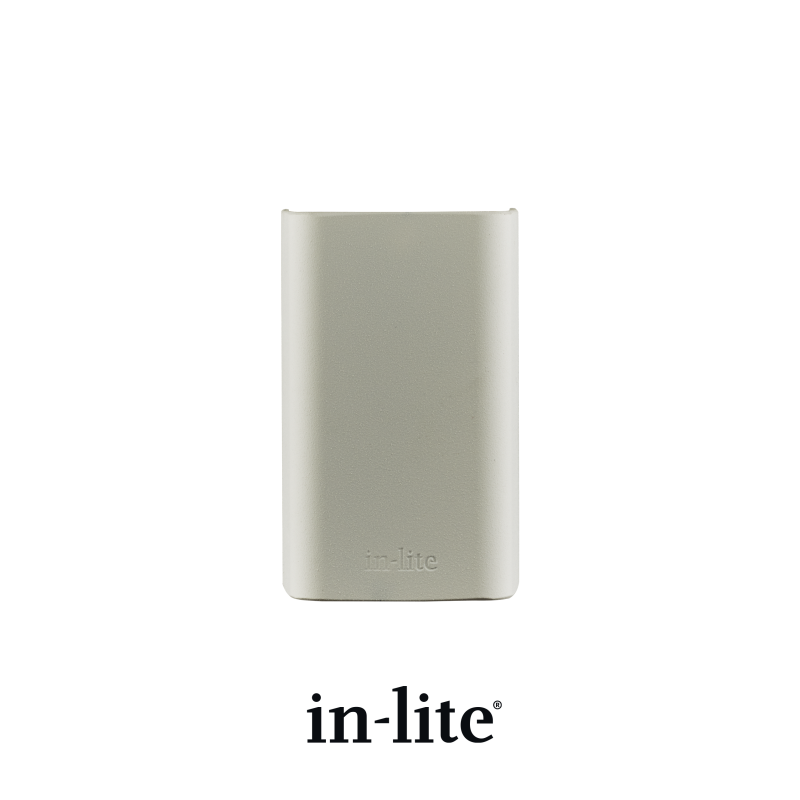

For best results, in-lite® recommend installing the ACE DOWN at a height of 1.4 to 1.8 metres, with fittings spaced approximately 2 to 2.5 metres apart. The fitting is available in Dark Grey or Corten finishes, with Rose Silver and White also available.
Installation is straightforward using the supplied screws and wall plugs, allowing secure mounting to walls or fencing.
These 12v wall lights are compatible with the in-lite® TOUCH DIMMER, allowing you to cycle through five brightness levels, from full brightness to completely switched off.
The ACE DOWN is also compatible with in-lite® SHUTTER 1 accessories, which clip onto the light source to adjust the beam direction and lighting effect. For installation on sloped or uneven fences, the in-lite® FIT mounting plate can be used to achieve a level finish.
Each in-lite® fitting features a high quality LED with a 25,000 hour lifespan, providing long lasting performance. When used as part of the in-lite® system, the ACE DOWN is covered by a 5 year warranty. Every fitting includes an EASY-LOCK connector for quick connection to the in-lite® CBL 12v cable, with the option to extend the cable length by up to 3 metres using CBL-EXT CORD extensions.
When designing an in-lite® lighting system, always calculate the total VA load rather than wattage to ensure it remains within the maximum rating of the selected transformer.
