IN-LITE® ACE UP/DOWN - 12v Garden Wall Light

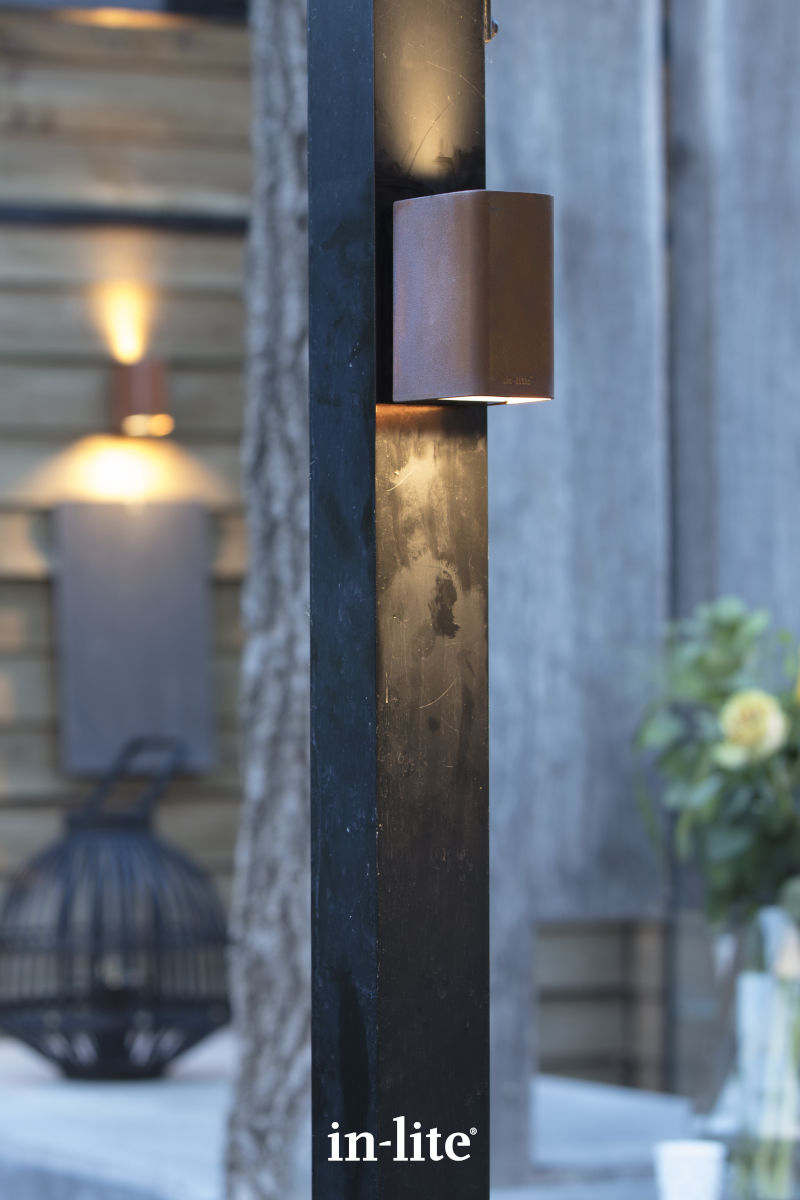

The in-lite® ACE UP/DOWN wall light is a low voltage outdoor fitting that produces a focused beam of light both upwards and downwards, making it ideal for creating striking architectural effects on walls, fences and entrances. The light sources are recessed within the fixture to minimise glare while delivering a clean, well-defined lighting effect.

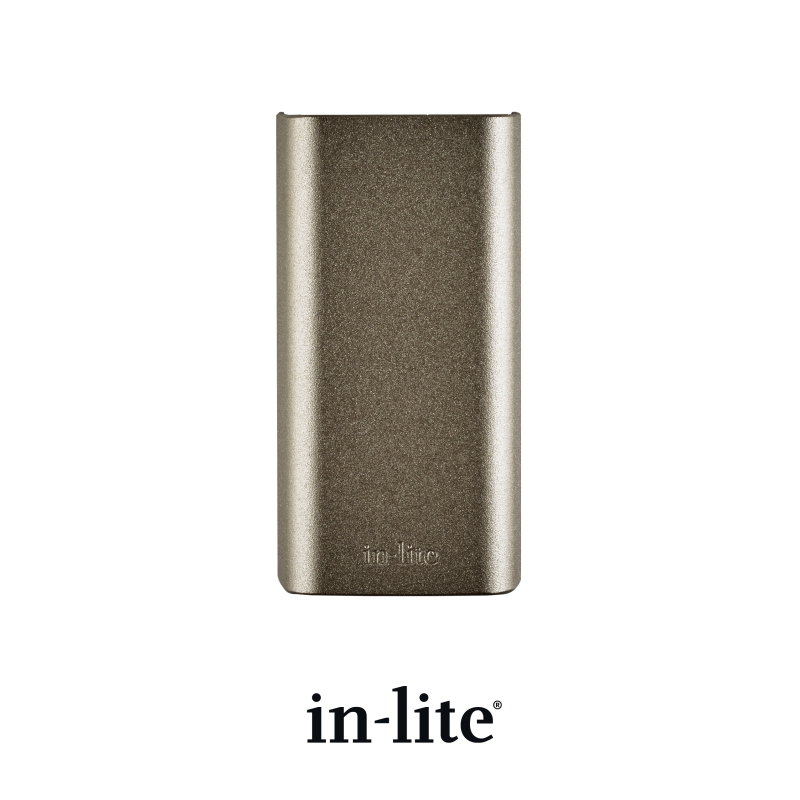

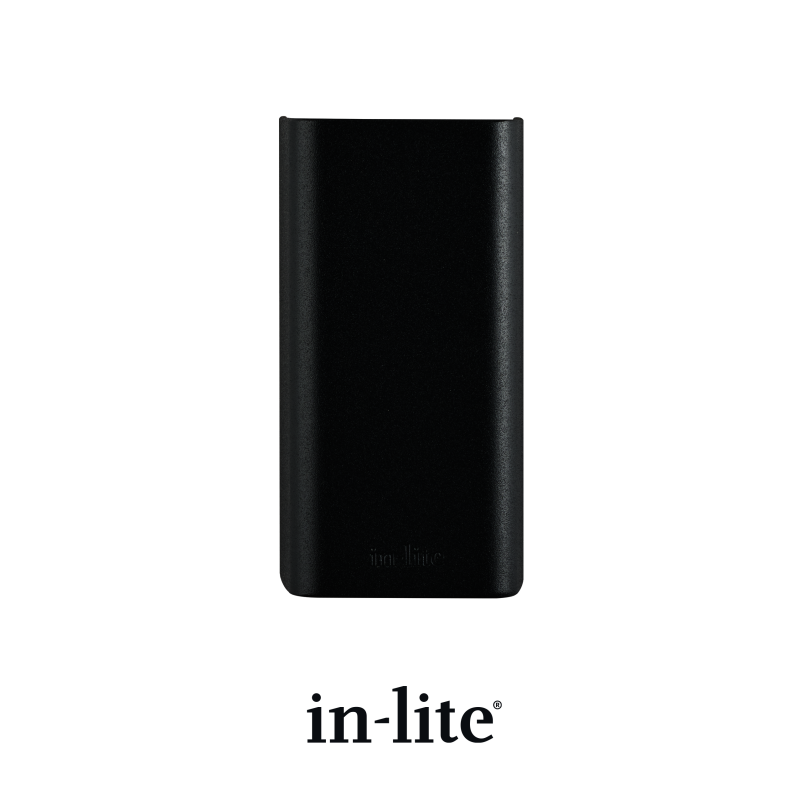

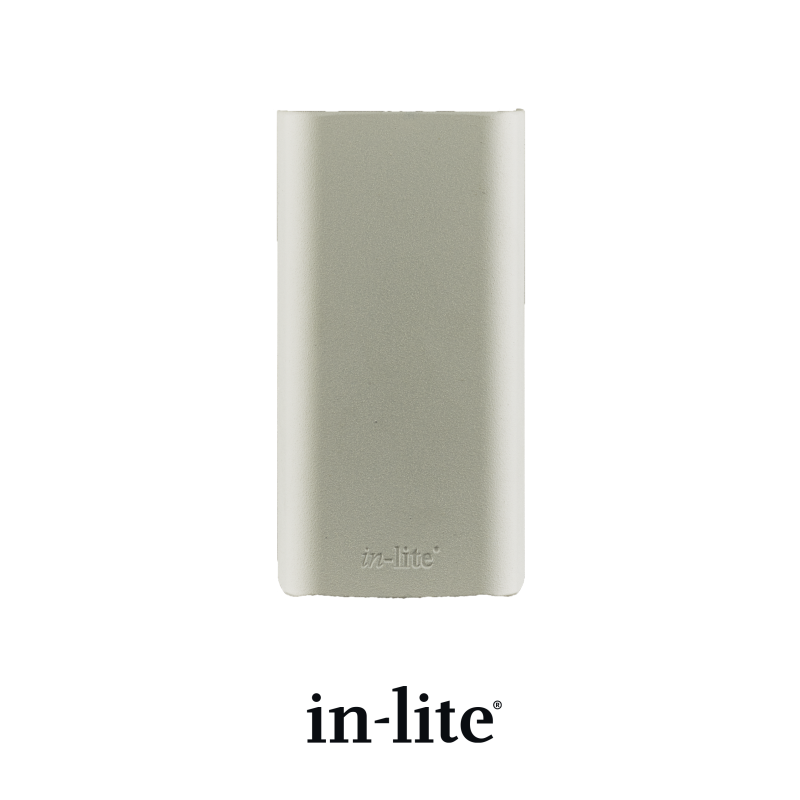

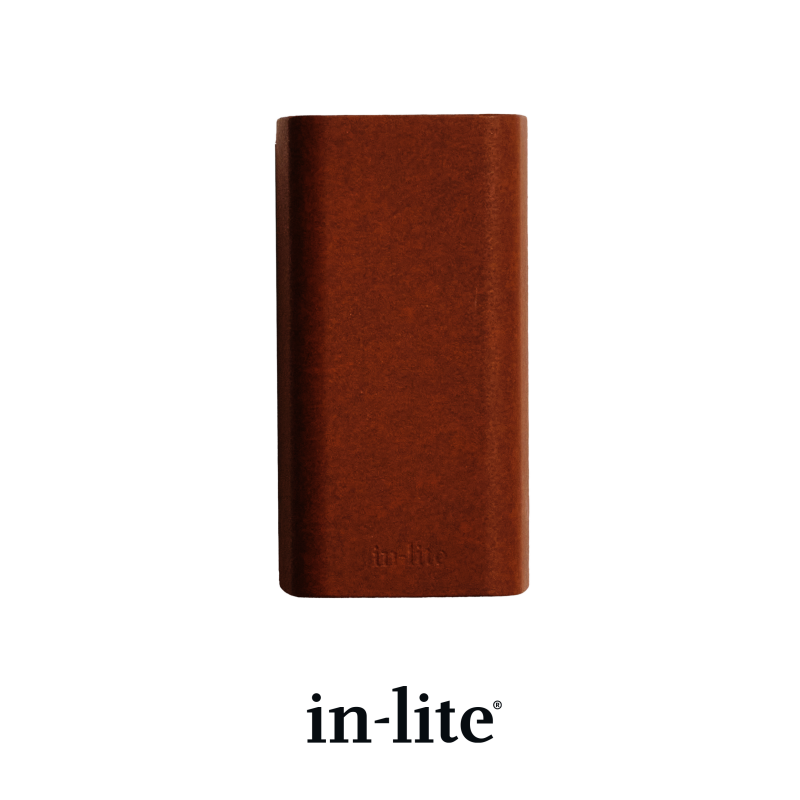

For optimal results, in-lite® recommend installing the ACE UP/DOWN at a height of 1.4 to 1.8 metres, with fittings spaced approximately 2 to 2.5 metres apart. The fixture is available in Dark Grey or Corten finishes, with Rose Silver and White also available.

Installation is simple using the supplied screws and wall plugs, allowing the light to be securely mounted to walls or fencing.

These 12v wall lights are compatible with the in-lite® TOUCH DIMMER, giving you five selectable brightness levels that can be adjusted easily, from full brightness to completely switched off.

The ACE UP/DOWN is compatible with in-lite® SHUTTER accessories, which clip onto the light sources to allow adjustment of the beam direction and lighting effect. As this fitting features two light sources, two SHUTTER accessories are required.

Each in-lite® fitting uses a high quality LED with a 25,000 hour lifespan, ensuring long-lasting performance. When used as part of the in-lite® system, the ACE UP/DOWN is covered by a 5 year warranty. Every fitting is supplied with an EASY-LOCK connector for fast connection to the in-lite® CBL 12v cable, with the option to extend the cable length by up to 3 metres using CBL-EXT CORD extensions.

When planning an in-lite® lighting system, always calculate the total VA load rather than wattage to ensure it remains within the maximum rating of the selected transformer.
